压力传感器

ELVH系列微差压传感器基于All Sensor的超低压CoBeam2 TM技术。这种创新的传感元件技术为压力传感器提供了一流的超低压传感，降低了封装应力影响，从而提高了整体长期稳定性，并大大提高了灵敏度。

ELVH系列压力传感器为设计工程师提供了出色的灵活性，在封装组合方面有多种选择。

ELVH系列压力传感器接口多样。数字接口便于将传感器集成到广泛的过程控制和测量系统中，允许直接连接到串行通信通道。对于电池供电的系统，传感器可以在读数之间进入低功耗的模式，以最大限度地减少电源负载。

这些经过校准和补偿的传感器在较宽的温度范围内提供准确、稳定的输出。该系列适用于非腐蚀性、非离子性工作流体，如空气、干燥气体。在±25毫巴及以上的压力范围内，保护性聚对二甲苯涂层可用于湿气/苛刻介质保护。

ELVHT压力传感器特点

压力范围宽：0.5 inH2O至60 inH2O、1 psi至150 psi的和2.5mBar至10Bar

测量类型多样：提供差压、表压和绝对压力模式

补偿温度可选：0至50°C和-20至85°C温度补偿选项

输出方式：

• 提供数字I2C或SPI 14位输出或比率模拟电压输出选项

• 6个独特的I2C地址选项

• 4种独特的传递函数选项

供电电压可选：3.3V和5V电源电压产品

有多种端口选项可供选择：

• 无端口


• 倒钩轴向端口


• 打捆针大端口


• 侧端口

• 也可提供其他封装，请与工厂核实

多种潜在封装可选择：

• SMT J型封装


• DIP封装


• SIP封装


Parylene涂层适用于10 inH2O及以上的ELVH压力传感器型号

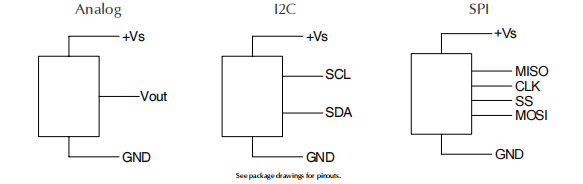

ELVH压力传感器输出方式

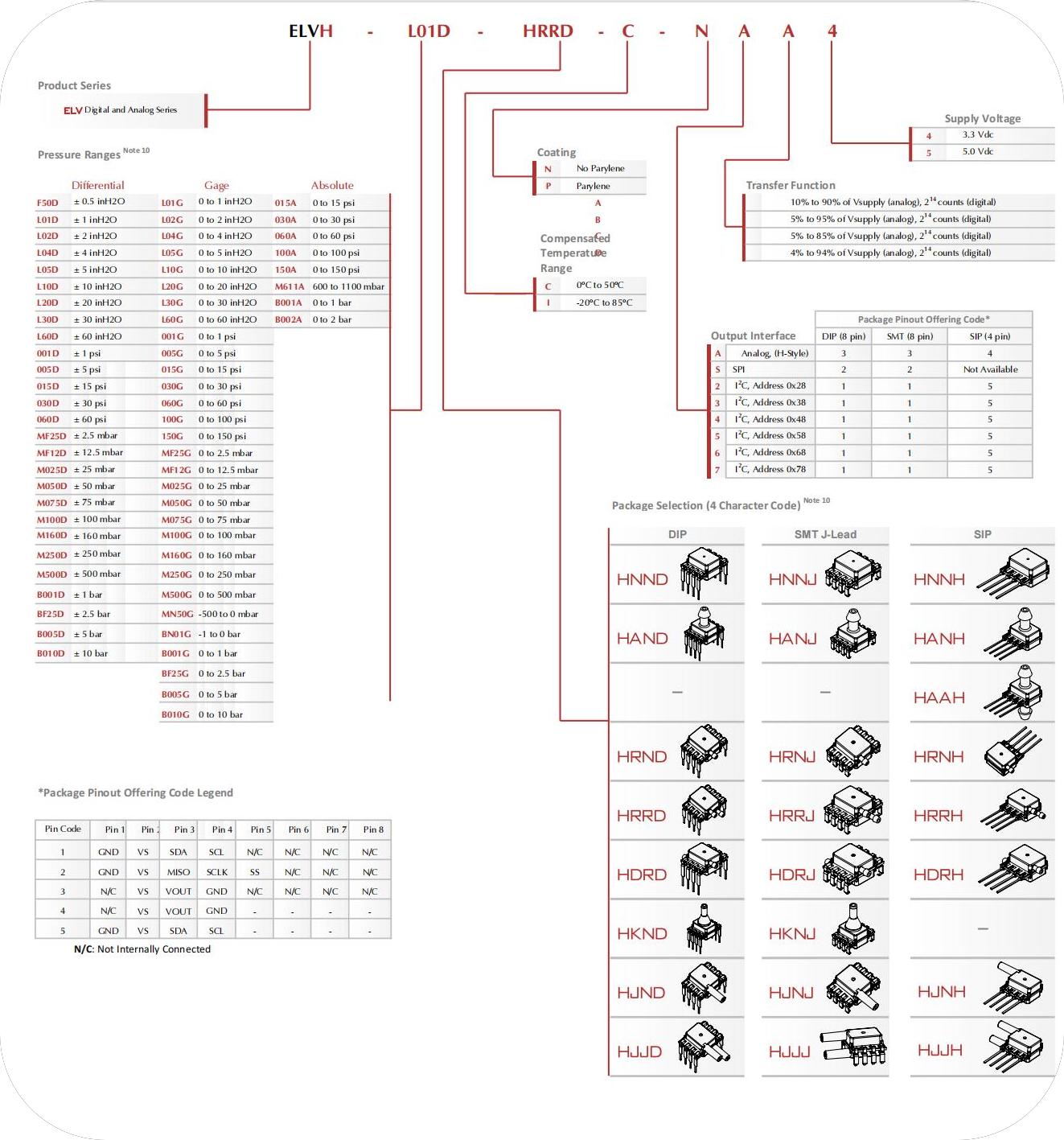

ELVH系列压力传感器选型

ELVH系列压力传感器型号列表:

ELVH-001D-HAAH-C-NAA5

ELVH-001D-HNNH-C-N2A4

ELVH-001D-HRRD-C-N2A5

ELVH-001D-HRRD-C-NAA5

ELVH-001D-HRRD-I-N2A4

ELVH-001D-HRRD-I-NAA5

ELVH-001D-HRRJ-C-N2A4

ELVH-001D-HRRJ-C-NAA4

ELVH-001D-HRRJ-I-N2A4

ELVH-001D-HRRJ-I-NAA4

ELVH-001G-HAND-C-NAA5

ELVH-001G-HANJ-C-NAA5

ELVH-001G-HRNJ-C-PSA4

ELVH-001G-HRRD-C-NAA5

ELVH-005D-HNNH-C-NAA5

ELVH-005D-HRND-C-PSA5

ELVH-005D-HRNJ-I-N3A4

ELVH-005D-HRRD-C-N2A5

ELVH-005D-HRRD-C-NAA5

ELVH-005D-HRRD-I-N2A4

ELVH-005D-HRRD-I-NAA5

ELVH-005D-HRRJ-C-N2A4

ELVH-005D-HRRJ-C-NAA4

ELVH-005D-HRRJ-C-NSA4

ELVH-005D-HRRJ-I-N3A4

ELVH-005D-HRRJ-I-NAA4

ELVH-005G-HAND-C-NSA4

ELVH-005G-HAND-C-P2A4

ELVH-005G-HAND-I-PAA5

ELVH-005G-HRRJ-I-N3A4

ELVH-005G-HRRJ-I-NAA5

ELVH-015A-HAND-C-N2A4

ELVH-015A-HAND-C-NAA5

ELVH-015A-HAND-C-P2A4

ELVH-015A-HAND-I-NAA5

ELVH-015A-HAND-I-NAB5

ELVH-015A-HAND-I-PSA4

ELVH-015A-HANH-C-N2A4

ELVH-015A-HNNJ-C-N2A4

ELVH-015A-HNNJ-C-NAA5

ELVH-015A-HNNJ-I-N5A4

ELVH-015A-HRND-C-NSA4

ELVH-015A-HRND-C-NSA5

ELVH-015A-HRND-I-NAA5

ELVH-015A-HRNJ-C-NAA4

ELVH-015A-HRNJ-I-N3A4

ELVH-015A-HRNJ-I-NSA5

ELVH-015D-HAAH-C-N2A4

ELVH-015D-HAAH-C-NAA5

ELVH-015D-HAND-C-NSA4

ELVH-015D-HAND-C-P2A4

ELVH-015D-HAND-I-NAA5

ELVH-015D-HRNJ-C-NSA4

ELVH-015D-HRRD-C-NAA4

ELVH-015D-HRRD-C-NAA5

ELVH-015D-HRRD-I-N2A4

ELVH-015D-HRRD-I-NAA5

ELVH-015D-HRRJ-C-NSA4

ELVH-015G-HAND-C-NAA5

ELVH-015G-HAND-I-N2A4

ELVH-015G-HAND-I-NAA5

ELVH-015G-HANH-C-NAA4

ELVH-015G-HKNJ-C-NAA5

ELVH-015G-HNNH-C-N2A5

ELVH-015G-HRRD-I-NAA5

ELVH-015G-HRRD-I-NAB5

ELVH-030A-HAND-C-N2A4

ELVH-030A-HAND-C-NAA5

ELVH-030A-HAND-I-N2A4

ELVH-030A-HAND-I-NAA5

ELVH-030A-HJND-C-NAA5

ELVH-030A-HNND-I-NAA5

ELVH-030A-HNNJ-C-NSA5

ELVH-030A-HNNJ-I-N2A4

ELVH-030A-HRND-C-N3A4

ELVH-030A-HRND-C-NAA5

ELVH-030A-HRND-I-N2A4

ELVH-030A-HRNJ-I-NAA5

ELVH-030D-HKND-C-PSA5

ELVH-030D-HKNJ-C-NSA5

ELVH-030D-HRRD-C-PAA4

ELVH-030G-HAND-C-NAA5

ELVH-030G-HAND-C-PSA4

ELVH-030G-HAND-I-NAA5

ELVH-030G-HAND-I-P2A4

ELVH-060G-HAND-C-NAA5

ELVH-060G-HAND-C-NSA4

ELVH-060G-HAND-C-P2A4

ELVH-060G-HAND-I-NAA5

ELVH-060G-HANJ-I-N2A4

ELVH-060G-HJNJ-C-N2A4

ELVH-100A-HAND-C-NAA5

ELVH-100A-HAND-I-PSA4

ELVH-100A-HANH-C-N2A5

ELVH-100G-HAND-C-NSA3

ELVH-100G-HAND-C-NSA4

ELVH-100G-HAND-C-P2A4

ELVH-100G-HAND-C-PSA4

ELVH-100G-HANJ-C-NSA4

ELVH-100G-HANJ-I-N4A4

ELVH-100G-HJJD-C-NAA5

ELVH-100G-HJND-C-NAA5

ELVH-100G-HKNJ-C-N2A4

ELVH-100G-HRND-C-NSA5

ELVH-100G-HRRD-C-NAA5

ELVH-150A-HAND-I-NAB5

ELVH-150G-HAND-C-NAA5

ELVH-150G-HAND-C-PAA4

ELVH-150G-HAND-C-PSA4

ELVH-150G-HAND-I-N2A4

ELVH-150G-HANJ-I-NAA4

ELVH-B001D-HAAH-C-N2A4

ELVH-B001D-HNND-C-NAA4

ELVH-B001G-HRNJ-C-NAA5

ELVH-B002A-HRNJ-C-N2A4

ELVH-B005D-HKNJ-C-N6A4

ELVH-B005G-HKNJ-C-N2A4

ELVH-B005G-HRRJ-I-N2A4

ELVH-B010G-HRND-C-N2A4

ELVH-B010G-HRNJ-C-NSA4

ELVH-BN01G-HAAH-I-PAA5

ELVH-BN01G-HAND-C-PAB5

ELVH-BN01G-HAND-I-N2B4

ELVH-BN01G-HAND-I-N2B5

ELVH-F50D-HRRD-C-N2A4

ELVH-F50D-HRRD-C-N2A5

ELVH-F50D-HRRD-C-N3A4

ELVH-L01D-HRND-C-NSA5

ELVH-L01D-HRRD-C-N2A4

ELVH-L01D-HRRD-C-N2A5

ELVH-L01D-HRRD-C-NAA4

ELVH-L01D-HRRD-C-NAA5

ELVH-L01D-HRRD-I-N2A5

ELVH-L01D-HRRD-I-NAB4

ELVH-L01D-HRRJ-C-N2A4

ELVH-L01D-HRRJ-C-N2A5

ELVH-L01D-HRRJ-C-NSA5

ELVH-L01D-HRRJ-I-N2A4

ELVH-L01G-HRND-I-NAB4

ELVH-L02D-HAAH-C-N5A4

ELVH-L02D-HRRD-C-N2A5

ELVH-L02D-HRRD-C-NAA4

ELVH-L02D-HRRD-C-NAA5

ELVH-L02D-HRRD-C-NSA4

ELVH-L02D-HRRD-I-NAA4

ELVH-L02D-HRRD-I-NAA5

ELVH-L02D-HRRJ-C-N2A4

ELVH-L02D-HRRJ-I-N2A4

ELVH-L02G-HNNJ-I-N2A4

ELVH-L02G-HRRD-C-NAA5

ELVH-L02G-HRRJ-C-N2A4

ELVH-L02G-HRRJ-I-N2A4

ELVH-L04D-HDRH-I-NAA5

ELVH-L04D-HRRD-C-N2A4

ELVH-L04D-HRRD-C-NAA5

ELVH-L04D-HRRD-I-N2A5

ELVH-L04D-HRRJ-C-N2A4

ELVH-L04D-HRRJ-C-NAA4

ELVH-L04D-HRRJ-C-NAA5

ELVH-L04G-HRRD-I-NAA5

ELVH-L05D-HAAH-C-N2A4

ELVH-L05D-HAAH-I-NAA5

ELVH-L05D-HANH-C-N2A4

ELVH-L05D-HJJD-C-NAA5

ELVH-L05D-HJND-C-NAA5

ELVH-L05D-HRNJ-I-N7A4

ELVH-L05D-HRRD-C-NAA5

ELVH-L05D-HRRD-I-NAA4

ELVH-L05D-HRRH-I-N3A4

ELVH-L05D-HRRJ-C-N2A4

ELVH-L05D-HRRJ-C-N7A4

ELVH-L05D-HRRJ-I-N7A4

ELVH-L05D-HRRJ-I-NAA5

ELVH-L10D-HAAH-C-N2A4

ELVH-L10D-HAAH-C-NAA5

ELVH-L10D-HRND-C-NSA5

ELVH-L10D-HRRD-C-N2A4

ELVH-L10D-HRRD-I-NAA4

ELVH-L10D-HRRD-I-NAA5

ELVH-L10D-HRRH-I-N5A4

ELVH-L10D-HRRJ-I-NAA4

ELVH-L10D-HRRJ-I-NAA5

ELVH-L10G-HRRJ-I-NAB5

ELVH-L20D-HAAH-C-NAA5

ELVH-L20D-HAAH-I-NAA5

ELVH-L20D-HRRD-C-N2A4

ELVH-L20D-HRRD-C-NSA4

ELVH-L20G-HRRJ-C-NAA5

ELVH-L20G-HRRJ-I-NAA4

ELVH-L60G-HKND-C-PSA4

ELVH-M025D-HRRD-C-N2A5

ELVH-M025D-HRRD-C-NSA4

ELVH-M025D-HRRJ-C-N3A4

ELVH-M025D-HRRJ-C-N5A4

ELVH-M050D-HANJ-C-NAA4

ELVH-M050D-HKNJ-C-N6A4

ELVH-M050D-HRRD-C-NSA4

ELVH-M050D-HRRJ-C-NSA4

ELVH-M050D-HRRJ-I-NSA4

ELVH-M050D-HRRJ-I-NSA5

ELVH-M050G-HRND-C-N2A4

ELVH-M075D-HKND-C-NSA5

ELVH-M100D-HAND-C-NSA4

ELVH-M100D-HNND-C-NAA4

ELVH-M100D-HRND-C-NSA5

ELVH-M100D-HRRD-C-N4A4

ELVH-M100D-HRRD-I-NAA5

ELVH-M100D-HRRJ-C-NSA4

ELVH-M100D-HRRJ-I-NAA5

ELVH-M100D-HRRJ-I-P7A4

ELVH-M100G-HANH-C-N2A4

ELVH-M100G-HJJD-C-NAA5

ELVH-M100G-HJND-C-NAA5

ELVH-M100G-HKNJ-C-N4A4

ELVH-M100G-HRRD-C-NAA5

ELVH-M160D-HRRD-C-N2A5

ELVH-M160D-HRRD-C-PSA5

ELVH-M160G-HKNJ-C-N5A4

ELVH-M250D-HAAH-C-NAA5

ELVH-M250D-HRRD-C-NSA4

ELVH-M250D-HRRD-C-PSA5

ELVH-M250D-HRRJ-C-N4A4

ELVH-M250D-HRRJ-C-NAA4

ELVH-M250D-HRRJ-I-N3A5

ELVH-M250G-HKNJ-C-N6A4

ELVH-M250G-HRNJ-C-NAA5

ELVH-M250G-HRRH-I-N2A4

ELVH-M500D-HRRD-C-N2A4

ELVH-M500D-HRRD-I-N2A4

ELVH-M500D-HRRJ-C-N3A4

ELVH-M500D-HRRJ-I-NSB4

ELVH-M500G-HANJ-C-N2A4

ELVH-M500G-HRND-C-N2A4

ELVH-M611A-HAND-C-PSB4

ELVH-M611A-HAND-I-PAA5

ELVH-M611A-HRNJ-I-N2A4

ELVH-MF12D-HAAH-C-NAA5

ELVH-MF12D-HANH-I-NAA5

ELVH-MF12D-HRRD-I-N2A4

ELVH-MF12D-HRRD-I-NSA4

ELVH-MF12D-HRRJ-C-N3A4

ELVH-MF25D-HRRD-C-N2A4

ELVH-MN50G-HAND-C-NSA4
